C59
Boshuo

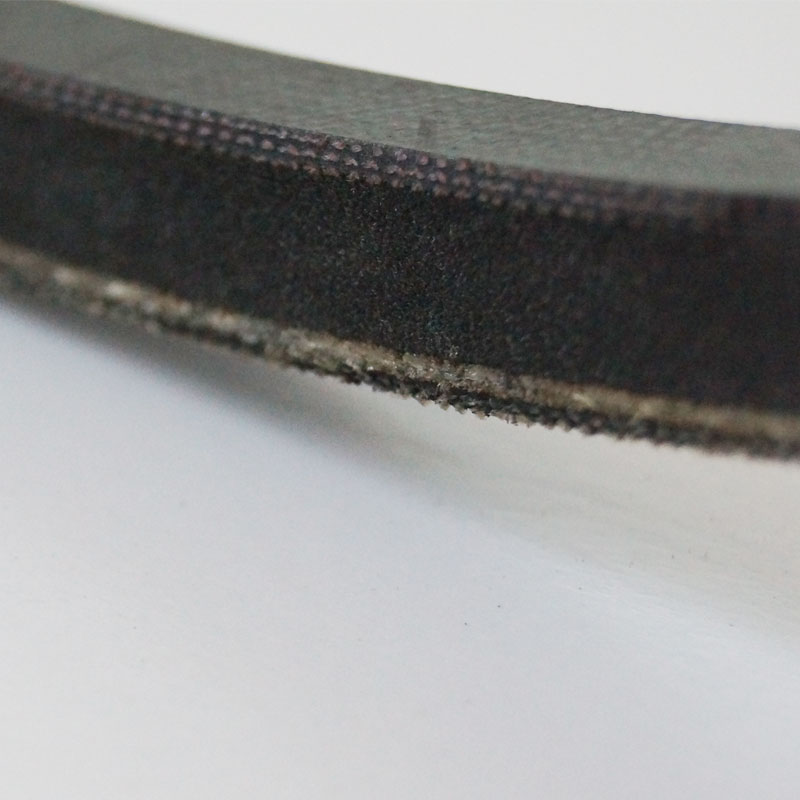

PRODUCT FEATURES
The top and the bottom are encased by the wrapper. Both sides are rubber. V-belt of tooth shape groove is designed for the bottom to improve the flexural property.
Structure
| NO | Name | Function | Naterial |
| 1 | Top Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
| 2 | embedding compound | Support and protect the adhesive force of t-he tensile member | CR |
| 3 | Tensile Member(Core Cord) | nuclrar material to pass the dynamic force | Polyester |
| 4 | Bottom Rubber | Maintain the shape of the rubber and impr-oveits side compression ability and wearabili-ty | CR, Synthetic fiber |
| 5 | Bottom Fabric | Absorb the impact and pr-event crack of the core rubber | Elastic Fabric |
FEATURES
Large intensity, high fiexility, good durability
Special bottom rubber used, small elongation and long service life
Excellent heat-resistance, oil-proot, and wearing resistance
High transmission efficiency
Suitable for band pulley with minor diameter
Safe performance can be guaranteed even during high-speed operation

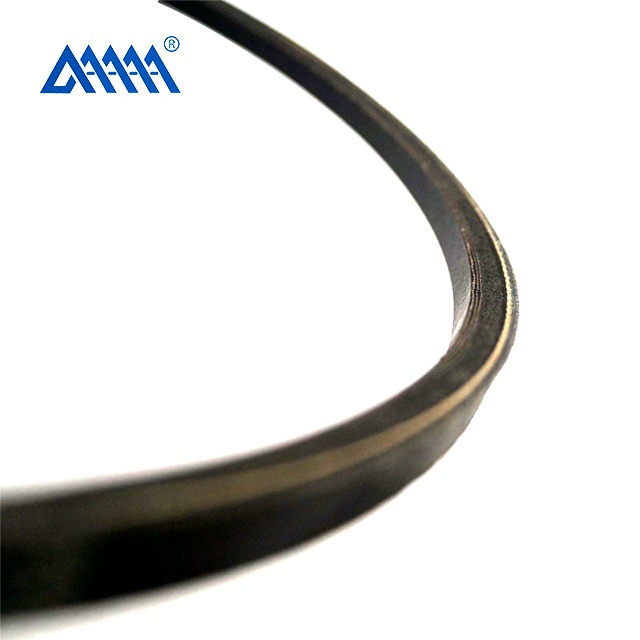

SECTION SIZE OF INDUSTRIAL RAW EDGE V BELTS
Type | Top Width | Belt thickness | Angle |
HM | 10.5 | 8.0 | 38 |
AX | 13 | 8.0 | 38 |
BX | 17 | 11 | 38 |
CX | 22 | 14 | 38 |
DX | 32 | 19 | 38 |
EX | 38 | 23 | 38 |
Industrial v belt size rangeIndustrial v belt size range
Size No | Range ISO(mm) | Effective Length(mm) |
XPZ | 600-1875 | 600-1876 |
XPA | 732-2200 | 732-2201 |
XPB | 1016-2200 | 1016-2201 |
XPC | 1016-2200 | 1016-2201 |
If you hava special requirements, Please contact us and we will try to satisfy your needs.
OVERVIEW
PRODUCT PACKAGING
FACTOR TOUR
CERTIFICATE
EXHIBITION
MODE OF TRANSPORT
To be negotiated ：
| Quantity(Piece) | 1-1000 | >1000 |
| Est. Time(days) | 15 | To be negotiated |
RFQ
Q1: Can i order a small quantity of samples?
---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX
or others according to your requirements.
Q2: How could i know whether the belt fits for my machine?
---- You can tell me which product you are interested in, and i will give you its main sizes. You
can also send me drawings or samples, and then we will put them into production at your requests.
Q3: I want to find a supplier for my new products. Can you help me?
---- Yes. Kindly offer me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
---- Usually 10-15 days for drawings and 7 days for samples.
Q5: Can we stencil (or print ) our logo or company name on the belt or package?
---- Yes. But we have a minimum order quantity.
Q6: What is your payment term?
---- T/T 30% deposit and T/T 70% balance beforce shipment.
Q7: What is your quotation?
---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.
