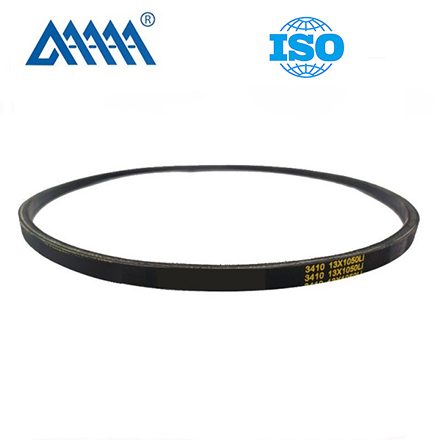

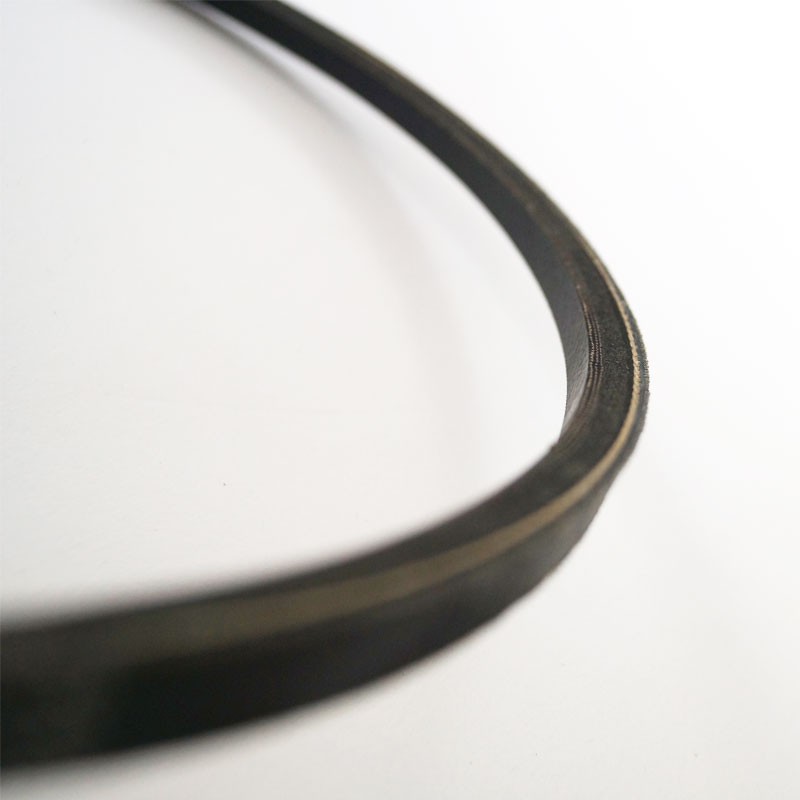

Raw Edge V-Belt

The top and the bottom are encased by the wrapper. Both sides are rubber. V-belt of tooth shape groove is designed for the bottom to improve the flexural property.
MOQ:
Material:
Availability:
Quantity:
  • HM36

  • Boshuo

  PRODUCT FEATURES


The top and the bottom are encased by the wrapper. Both sides are rubber. V-belt of tooth shape groove is designed for the bottom to improve the flexural property.


   Structure

Raw Edge V-Belt Structure

NO Name Function Naterial
1  Top Fabric Protect the lining tensile member Polyester Cotton Canvas
2 embedding compound Support and protect the adhesive force of t-he tensile member CR
3 Tensile Member(Core Cord) nuclrar material to pass the dynamic force Polyester
4 Bottom Rubber Maintain the shape of the  rubber and  impr-oveits side compression ability and wearabili-ty CR, Synthetic fiber
5 Bottom Fabric Absorb the impact and pr-event crack of the core rubber Elastic Fabric



  FEATURES


  • Large intensity, high fiexility, good durability

  • Special bottom rubber used, small elongation and long service life

  • Excellent heat-resistance, oil-proot, and wearing resistance

  • High transmission efficiency

  • Suitable for band pulley with minor diameter

  • Safe performance can be guaranteed even during high-speed operation


 SECTION SIZE OF INDUSTRIAL RAW EDGE V BELTS


Type

Top Width

Belt thickness

Angle

HM

10.5

8.0

38

AX

13

8.0

38

BX

17

11

38

CX

22

14

38

DX

32

19

38

EX

38

23

38

Industrial v belt size rangeIndustrial v belt size range

Size No

Range ISO(mm)

Effective Length(mm)

XPZ

600-1875

600-1876

XPA

732-2200

732-2201

XPB

1016-2200

1016-2201

XPC

1016-2200

1016-2201

 If you hava special requirements, Please contact us and we will try to satisfy your needs.


  OVERVIEW


Raw Edge V-Belt Structure


Raw Edge V-Belt


Raw Edge V-Belt


  PRODUCT PACKAGING


Raw Edge V-Belt product structure


  FACTOR TOUR


Raw Edge V-Belt Factory Tour


  CERTIFICATE


Raw Edge V-Belt certificate


  EXHIBITION


Raw Edge V-Belt Exhibition


  MODE OF TRANSPORT



 To be negotiated :

Quantity(Piece)  1-1000 >1000
Est. Time(days)  15 To be negotiated


  RFQ


   Q1: Can i order a small quantity of samples?

   ---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX

   or others according to your requirements.

   Q2: How could i know whether the belt fits for my machine?

   ---- You can tell me which product you are interested in, and i will give you its main sizes. You

   can also send me drawings or samples, and then we will put them into production at your requests.

   Q3: I want to find a supplier for my new products. Can you help me?

   ---- Yes. Kindly offer me your drawings or samples for analysis.

   Q4: How long does it take to make a new product?

   ---- Usually 10-15 days for drawings and 7 days for samples.

   Q5: Can we stencil (or print ) our logo or company name on the belt or package?

   ---- Yes. But we have  a minimum order quantity.

   Q6: What is your payment term?

   ---- T/T 30% deposit and T/T 70% balance beforce shipment.

   Q7: What is your quotation?

   ---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.
