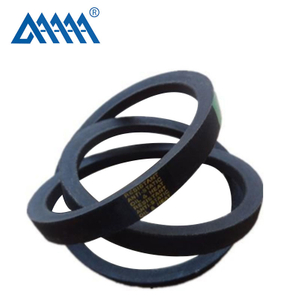

wrapped v belt A32 High quality rubber V-belt washing machine

Our company takes the lead in successfully developing new generation enhanced-type oil proof triangular belt.Different from the technology of ordinary triangular belt,it is manufactured using the technology of raw edge Vbelt.Its principal part is made of oil proof and best het resistance compound rubber,and the framework is made of special polyester stiff cord.
MOQ:
Material:
Availability:
Quantity:
  • M, A, B, C, D, E

  • Boshuo

  PRODUCT FEATURES


Rubber multi wedge belt both v belt and flat belt two point ,flat band of soft and tebaclous features of flat belts but also had compact and high efficent merits of v belt .


   Structure

china v belt manufacturer Structure

NO Name Function Naterial
1 Outside Fabric Protect the lining tensile member Polyester Cotton Canvas
2 Tensile Member core material to pass the dynamic force Polyester Wire
3 Top Rubber Naintain the top shape of the adhesive tape NR、CR、SBR
4 Buffer Rubber Support and protect the adhesive force of the tensile member NR、CR、SBR
5 Bottom Rubber Absorb the impact and pr-event crack of the core rubber NR、CR、SBR



  FEATURES


  • The wrapper protects the inner layer, strong durability.

  • Special core rubber used, smail elongation and long service life.

  • Excellent heat-resistance, oil-proof, and wearing resistance.

  • Prevent the generation of the static and keep safe use.

  • Small friction coefficient and large transmission effect during operation.

  • Less noise during operation.


   Section Size of Wrapped belt


Type

Top Width

Belt thickness

Angle

Production range

M

10

6

40

15-120

A

13

8

40

18-360

B

17

11

40

22-550

C

22

14

40

33-600

D

32

19

40

80-600

E

38

23

40

110-600

Cross Size of Narrow Wrapped Belt

Type

Top Width

Belt thickness

Angle

Production range

SPZ(FM)

9.7

8

40

500-6850

SPA

12.7

10

40

500-8000

SPB

16.3

13

40

600-8000

SPC

22

18

40

1000-12500

3V(9N)

9.5

8

40

20-200

5V(15N)

16

13.5

40

50-355

8V(25N)

25

23

40

100-500

  If you hava special requirements, Please contact us and we will try to satisfy your needs.


  OVERVIEW


china v belt manufacturer Structure


china v belt manufacturer


china v belt manufacturer


  PRODUCT PACKAGING


china v belt manufacturer product structure


  FACTOR TOUR


china v belt manufacturer Factory Tour


  CERTIFICATE


china v belt manufacturer certificate


  EXHIBITION


china v belt manufacturer Exhibition


  MODE OF TRANSPORT



 To be negotiated :

Quantity(Piece)  1-1000 >1000
Est. Time(days)  15 To be negotiated


  RFQ


   Q1: Can i order a small quantity of samples?

   ---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX

   or others according to your requirements.

   Q2: How could i know whether the belt fits for my machine?

   ---- You can tell me which product you are interested in, and i will give you its main sizes. You

   can also send me drawings or samples, and then we will put them into production at your requests.

   Q3: I want to find a supplier for my new products. Can you help me?

   ---- Yes. Kindly offer me your drawings or samples for analysis.

   Q4: How long does it take to make a new product?

   ---- Usually 10-15 days for drawings and 7 days for samples.

   Q5: Can we stencil (or print ) our logo or company name on the belt or package?

   ---- Yes. But we have  a minimum order quantity.

   Q6: What is your payment term?

   ---- T/T 30% deposit and T/T 70% balance beforce shipment.

   Q7: What is your quotation?

   ---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.


APPLICATION SCENARIOS


china v belt manufacturer APPLICATION SCENARIOS
