width mechanical belt

Synchronous belt transmission is a new type of transmission which is used to transmit power by meshing teeth and belt wheel. It has the advantages of gear drive, chain drive and belt drive.
Material:
MOQ:
Availability:
Quantity:

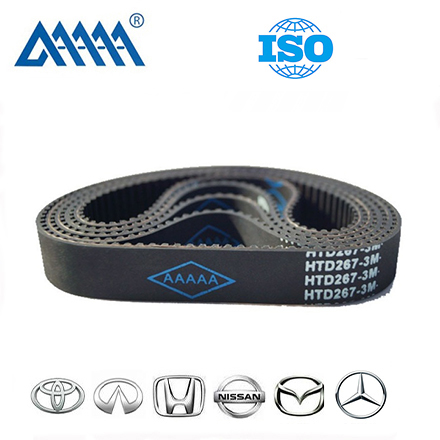

  • HTD267-3M

  • Boshuo

  PRODUCT FEATURES


    If you hava special requirements, Please contact us and we will try to satisfy your needs.


   Structure

width mechanical belt Structure

NO Name Function Material
1 Top Rubber Protect the lining tensile member CR
2 Tensile Member Protect the tensile member and maintain the shape of the rubber, prevent the rubber from stretching Glass Fiber
3 Teeth Rubber Protect the tensile member and maintain the shape of the rubber CR
4 Teeth Fabric Excellent frictional resistance which prolongs the service l-ife of product Nyion Fabric



  FEATURES


  • Low noise operation

  • No lubrication needed

  • Prevent skidding

  • Conservation of fuel and good economy

  • Super-high mechanical efficiency

width mechanical belt map

  Type and section size of rubber synchronous belt



 Type of Industrial rubber synchronous belt


Type

MXL

XXL

XL

L

H

XH

XXH

T2.5

T5

T10

T20

AT5

AT10

AT20

Picth

2.032

3.175

5.080

9.525

12.70

22.225

31.750

2.5

5

10

20

5

10

20

Tooth heighe

0.51

0.76

1.27

1.91

2.29

6.35

9.53

0.7

1.20

2.50

5.00

1.20

2.50

5.00

belt thickness

1.14

1.52

3.36

6.02

8.4

11.20

15.70

1.30

2.20

4.50

8.00

2.70

5.00

8.00

Angle

40

50

50

40

40

40

40

40

40

40

40

50

50

50


  Circle Arc tooth industrial rubber synchronous belt


Gear code

HTD

STPD/STS

RPP/HPPD

Type

3m

5m

8m

14m

20m

S2m

S3m

S4.5m

S5m

S8m

S14m

RP2m

RP3m

RP5m

RP8m

RP14m

Picth

3

5

8

14

20

2

3

4.5

5

8

14

2

3

5

8

14

Tooth heighe

1.17

2.06

3.36

6.02

8.4

0.67

1.14

1.71

1.91

3.05

5.3

0.76

1.15

1.95

3.2

6.00

belt thickness

2.4

3.8

6

10

13.2

1.36

1.9

2.81

3.4

5.3

10.2

1.36

1.9

3.5

5.5

10

 Suitable for drives demanding exact power transmission such as robotic machines, textile machinery, CNC machines, electronic equipment such as printers, scanners, currency counting machines etc.


  OVERVIEW


width mechanical belt Struture


width mechanical beltt


width mechanical belt


  PRODUCT PACKAGING


width mechanical belt product structure


  FACTOR TOUR


width mechanical belt Factory Tour


  CERTIFICATE


width mechanical belt certificate


  EXHIBITION


width mechanical belt Exhibition


  MODE OF TRANSPORT



 To be negotiated :

Quantity(Piece)  1-1000 >1000
Est. Time(days)  15 To be negotiated


  RFQ


   Q1: Can i order a small quantity of samples?

   ---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX

   or others according to your requirements.

   Q2: How could i know whether the belt fits for my machine?

   ---- You can tell me which product you are interested in, and i will give you its main sizes. You

   can also send me drawings or samples, and then we will put them into production at your requests.

   Q3: I want to find a supplier for my new products. Can you help me?

   ---- Yes. Kindly offer me your drawings or samples for analysis.

   Q4: How long does it take to make a new product?

   ---- Usually 10-15 days for drawings and 7 days for samples.

   Q5: Can we stencil (or print ) our logo or company name on the belt or package?

   ---- Yes. But we have  a minimum order quantity.

   Q6: What is your payment term?

   ---- T/T 30% deposit and T/T 70% balance beforce shipment.

   Q7: What is your quotation?

   ---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.


APPLICATION SCENARIOS


width mechanical belt APPLICATION SCENARIOS
