RECMF-8470
Boshuo

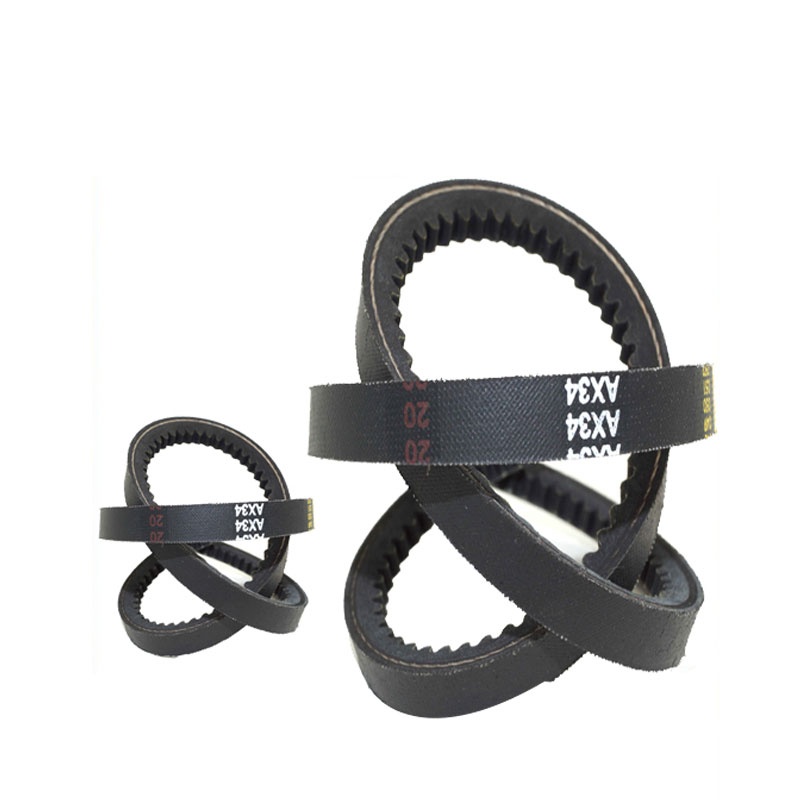

PRODUCT FEATURES
The top and the bottom are encased by the wrapper. Both sides are rubber .V belt of tooth shape groove is designed for the bottom to improve the flexible property.
Structure
NO | Name | Function | Naterial |
1 | Top Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
2 | embedding compound | Support and protect the adhesive force of t-he tensile member | CR |
3 | Tensile Member(Core Cord) | nuclrar material to pass the dynamic force | Polyester |
4 | Bottom Rubber | Maintain the shape of the rubber and impr-oveits side compression ability and wearabili-ty | CR, Synthetic fiber |
5 | Bottom Fabric | Absorb the impact and pr-event crack of the core rubber | Elastic Fabric |
FEATURES
Large intensity, high fiexility, good durability
Special bottom rubber used, small elongation and long service life
Excellent heat-resistance, oil-proot, and wearing resistance
High transmission efficiency
Suitable for band pulley with minor diameter
Safe performance can be guaranteed even during high-speed operation
SECTION SIZE OF RAW EDGE V BELTS FOR AUTOMOBILE
Type | Top width | Wrapped V belt | Rew edge V belt | REF | REC | Angle |
AV-10/9.5 | 10.0 | 8.0 | 7.5 | 7.5 | 8.0 | 40 |
AV-13/12.5 | 13.0 | 10.0 | 8.5 | 8.5 | 9.0 | 40 |
AV-15 | 15.0 | 9.0 | - | - | - | 40 |
AV-17 | 16.5 | 10.5 | 9.5 | 9.5 | 11.0 | 40 |
AV-22 | 22.0 | 14.0 | - | - | 13.0 | 40 |
If you hava special requirements, Please contact us and we will try to satisfy your needs.
OVERVIEW
PRODUCT PACKAGING
FACTOR TOUR
CERTIFICATE
EXHIBITION
MODE OF TRANSPORT
To be negotiated :
Quantity(Piece) | 1-1000 | >1000 |
Est. Time(days) | 15 | To be negotiated |
RFQ
Q1: Can i order a small quantity of samples?
---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX
or others according to your requirements.
Q2: How could i know whether the belt fits for my machine?
---- You can tell me which product you are interested in, and i will give you its main sizes. You
can also send me drawings or samples, and then we will put them into production at your requests.
Q3: I want to find a supplier for my new products. Can you help me?
---- Yes. Kindly offer me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
---- Usually 10-15 days for drawings and 7 days for samples.
Q5: Can we stencil (or print ) our logo or company name on the belt or package?
---- Yes. But we have a minimum order quantity.
Q6: What is your payment term?
---- T/T 30% deposit and T/T 70% balance beforce shipment.
Q7: What is your quotation?
---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.
