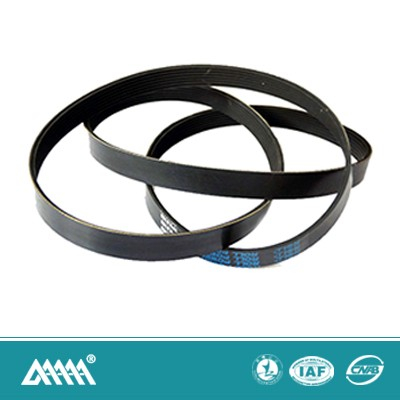

PJ
BS-BELT
PRODUCT FEATURES
The multi-ribbed belt design has the power transmission capability of the V-belt and the flexibility of the belt. The belt runs cooler and is more durable than standard V-belts. Uniform distribution of pressure across all components of the drive surface provides uniform load distribution, smooth operation, better impact resistance and higher stability - thus extending
Structure
| NO | Name | Function | Naterial |
| 1 | Top Fabric | Protect the lining tensile member | Poiyester Cotton Canvas |
| 2 | Buffer Rubber | Support and protect the adhesive force of the tensile member | CR |
| 3 | Tensile Member | Critical materlal to pass the dynamic force and endure high shock load | Poiyester |
| 4 | Bottom Rubber | Maintain the shape of the rubber and improveits side compression ability a nd wearability | CR |
FEATURES
CR V-ribbed belt has excellent heat and oll resistant
Not only bear to bend but also bear the ozone aging better than general unsaturated rubber
High transmission efficiency under the operating environment of high-speed rotation. reverse
flexure. small band pulley etc.
Bearing higher horizontal pressure incrementing to near to press function decreasing the stress
derormatlon after adding short fiber relnforcement.
DIMENSION OF BEIT SECTION
| Type | Ribsection | Angle of rib | Belt thickness | Rib numbers | Length Range |
| PJ | 2.34 | 40 | 4 | 3--36 | 495-1750 |
| PK | 3.56 | 40 | 4--6 | 3--25 | 495-2875 |
| PL | 4.7 | 40 | 10 | 3--16 | 900-2875 |
Application: Automobile, washing machine, dryer and fithess machine etc.
OVERVIEW
PRODUCT PACKAGING
FACTOR TOUR
CERTIFICATE
EXHIBITION
MODE OF TRANSPORT
To be negotiated ：
| Quantity(Piece) | 1-1000 | >1000 |
| Est. Time(days) | 15 | To be negotiated |
RFQ
Q1: Can i order a small quantity of samples?
---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX
or others according to your requirements.
Q2: How could i know whether the belt fits for my machine?
---- You can tell me which product you are interested in, and i will give you its main sizes. You
can also send me drawings or samples, and then we will put them into production at your requests.
Q3: I want to find a supplier for my new products. Can you help me?
---- Yes. Kindly offer me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
---- Usually 10-15 days for drawings and 7 days for samples.
Q5: Can we stencil (or print ) our logo or company name on the belt or package?
---- Yes. But we have a minimum order quantity.
Q6: What is your payment term?
---- T/T 30% deposit and T/T 70% balance beforce shipment.
Q7: What is your quotation?
---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.
